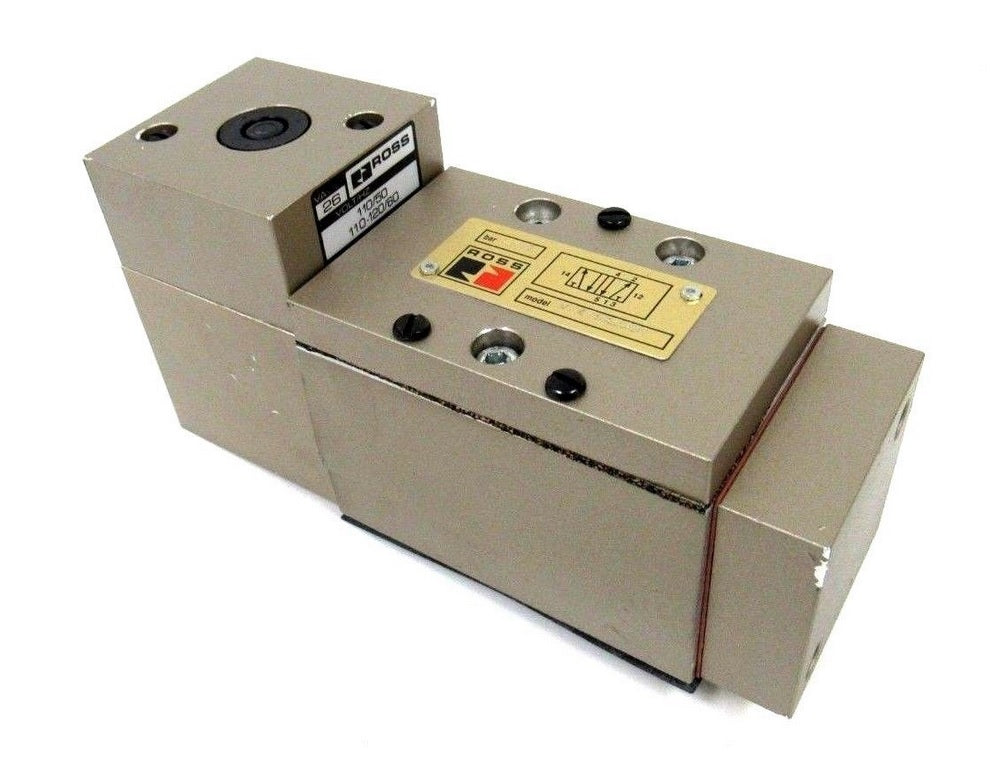

Ross W7476A3331 Solenoid Valve
Headquartered in Ferndale, Michigan, ROSS designs and manufactures pneumatic valves, control systems, and is universally recognized as a global leader in fluid power safety solutions and poppet valve technology. ROSS provides standard products and customized ROSS/FLEX® solutions for industrial machinery and automation applications.
Pilot solenoid valves use the differential pressure of the medium over the valve ports to open and close them. These are also known as servo-assisted solenoids which provide high flow rates and can operate at high pressure and temperature ranges, with lower power consumption.
W7476A331 5/2 Single Solenoid Pilot Controlled Air Return Valve
Technical Data
- W7076A3331
- Solenoid Valve
- Pilot Controlled
- W70 SERIES
- Single Solenoid
- 5-Way 2-Position
- Spring Return
- ANSI Size 2.5
- 2-10 Bar
- Port Size 3/8-1/2
- 100-110/50 VAC/HZ
- 110-120/60 VAC/HZ
- Ambient Temperature: 4° C to 50°C.
- Media Temperature: 4°C to 80°C.
- Flow Media: Filtered air; 5 micron recommended
