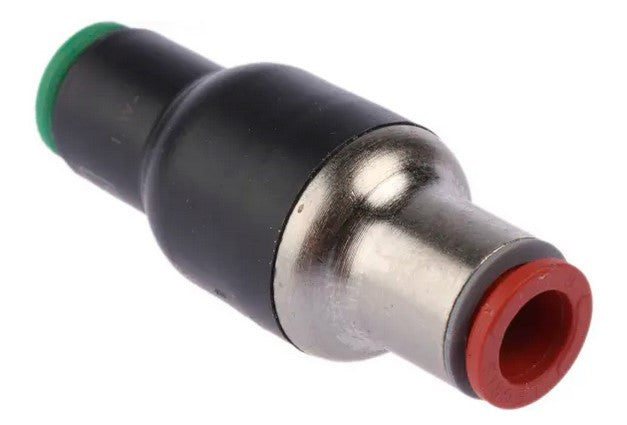

Parker Legris 7996 08 00 Clutch Non-Return Valve Tube to Tube 8mm

Parker Legris 7996 08 00 Clutch Non-Return Valve Tube to Tube 8mm

Regular price
£17.50
Sale price
£17.50
Regular price
£26.00
Sold out
Unit price
per
Shipping calculated at checkout.

In Stock: 7

Parker Legris 7996 08 00
Clutch Non-Return Valve
Tube to Tube 8mm


As a part of the Parker Hannifin Corporation, Parker Legris has been a global leader in pneumatic connection solutions for over 60 years, providing safe and reliable products to customers worldwide. Their ultimate goal is to improve productivity, and by working with customers they have successfully crafted custom solutions for that purpose.

All Parker Legris products are ISO 14001 certified, following a strict compliance with directives and regulations such as;
– European RoHS Directives: 2011/65/EC
– REACH Regulation no: 1907/2006
– Pressurised Equipment Directive: 97/23/EC
– NSF 51: NSF / ANSI-51

Non-return valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection. Wide range of applications.

Design
Lip seals for improved sealing performance.
Excellent vibration resistance.
Compact.
Lightweight.
Symbol showing the operating direction of flow.
Safe installation with colour codes:
• green push-button: supply version
• red push-button: exhaust version

Technical Specifications
Model: 8mm
Compatible Fluids: Compressed air
Working Pressure: 1 to 10 bar
Working Temperature: 0°C to +70°C
Cracking Pressure: 0.3 ba
Flow Characteristics for 8mm Model: 1080 bar (NI/MIN)
Component Materials
