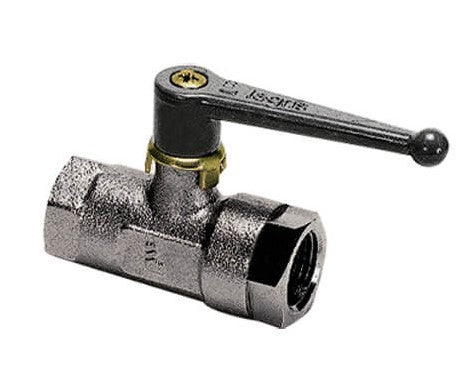

Parker Legris 0402 23 34 30 Double Female 1 BSP Ball Valve

Parker Legris 0402 23 34 30 Double Female 1 BSP Ball Valve

Regular price
£130.00
Sale price
£130.00
Regular price
£190.00
Sold out
Unit price
per
Shipping calculated at checkout.

In Stock: 60

Parker Legris 0402 23 34 30
Double Female 1" BSP Ball Valve


As a part of the Parker Hannifin Corporation, Parker Legris has been a global leader in pneumatic connection solutions for over 60 years, providing safe and reliable products to customers worldwide. Their ultimate goal is to improve productivity, and by working with customers they have successfully crafted custom solutions for that purpose.

All Parker Legris products are ISO 14001 certified, following a strict compliance with directives and regulations such as;
– European RoHS Directives: 2011/65/EC
– REACH Regulation no: 1907/2006
– Pressurised Equipment Directive: 97/23/EC
– NSF 51: NSF / ANSI-51

This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum

Technical Specifications
Diameter Nominal (DN): 23.0
Ball Material
: Polish Nickel Plated Brass
Product Type
: Universal and Universal Customised Series for oxygen
Minimum Operating Temperature
: Up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C
Connection 1 Thread Size (metric)
: G1
Brand
: Legris
Division
: Low Pressure Connectors Europe Division
Sleeve Material
: Brass
Industry
: Industrial Manufacturing Equipment
Application
: Pneumatics, Process Control, Safety, Fluid Control
Nut Material
: Nick
Connection 1 Thread Style
: BSPP
Technology
: Fluid & Gas Handling, Process Control, Pneumatics
Product Type
: Ball Valves
Product Style
: Female Ball Valve
Product Series
: Universal Series Customised for Special Application
Function
: 2-Way
Operation Type
: Lever-operated
Shape
: Inline
Maximum Operating Pressure
: Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Maximum Flow Rate
: n/a L/min
Flow Rate
: n/a L/min
Connection Type
: BSPP
Connection Size
:  G1
Orifice Size
: 23 mm
Configuration
: 2/2
For Fluid Type
: Air, Inert Gases, Water, Volatile Gas
Maximum Operating Temperature
: 80 °C
Mounting Type
: Inline
Actuation Type
: Manual
Specifications Met
: DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH
Body Material
: Nickel-Plated Brass
Seat Material
: Rilsan Graphited
Seal Material
: EPDM
Stem Material
: Brass
Ball Material
: Polish Nickel-Plated Brass
O-Ring Material
: EPDM
Handle Type
: Grey, Long Lever (ZAMAK)
Weight
: 1.009 kg, 2.224 lb
Stem Seal Material
: EPDM
Shape
: 2/2 in-line ball valve female
Ball Seal Material
: EPDM
Connection 2 Tube O.D. (mm)
: na
Handle
: ZAMAK
