As a part of the Parker Hannifin Corporation, Parker Legris has been a global leader in pneumatic connection solutions for over 60 years, providing safe and reliable products to customers worldwide. Their ultimate goal is to improve productivity, and by working with customers they have successfully crafted custom solutions for that purpose.

All Parker Legris products are ISO 14001 certified, following a strict compliance with directives and regulations such as;
– European RoHS Directives: 2011/65/EC
– REACH Regulation no: 1907/2006
– Pressurised Equipment Directive: 97/23/EC
– NSF 51: NSF / ANSI-51

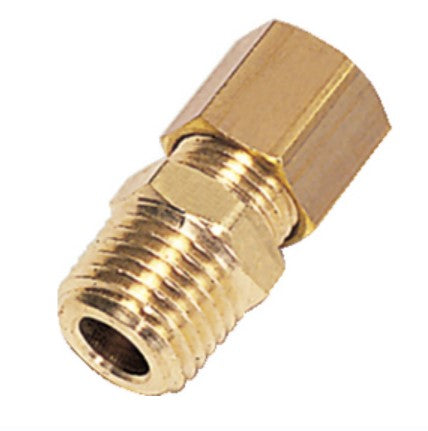

Brass Compression Fittings
These "universal" fittings provide users with numerous connection options for a wide variety of tube materials without the need for tube threading or soldering.
This range guarantees excellent long-term sealing and performance.

Technical Specifications

Connection 1 Thread Size (metric): R3/8
O-Ring Material: na
Product Type: Brass compression fittings
Nut Material: Brass

Sleeve Material: Brass
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 100 °C

Media: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
Specifications Met: CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX)
Connection 1 Thread Style: BSPT
Connection 2 Tube O.D. (mm): 14
Shape: Male stud fitting thread

Weight:    0.068 kg

The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted by the manufacturers if any products are incorrectly or inadequately fitted.
Goods may not be exact to image shown.
