Eaton industrial valves consistently deliver superior performance across stationary and mobile hydraulic applications. From press to bore, clamp to cut, lift to dig and beyond, they provide reliable operation even under extreme conditions.

Danfoss industrial valves and systems are designed with durability and reliability in mind, withstanding challenging operating conditions and delivering consistent performance across industrial applications.

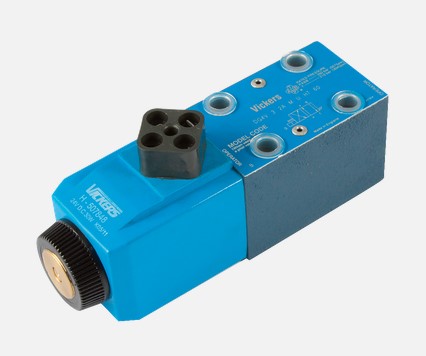

Technical Specifications

Manufacturer: Vickers by Danfoss
Type: CETOP 3 Single Solenoid Valve
Position: 2 Position, Spring Offset End to End,
Voltage: 110V AC
Litres per Minute: 80
Working Fluid Temperature: -20°C to +70°C
Maximum Working Pressure: 350 bar
Maximum Flow Rates: Up to 80 L/min.

Additional Information
Mounting Interface.
ISO 4401 Size 3.
ANSI/B93.7M Size 3.
CETOP RP6SH Size 3.
DIN 24340 (NG6).
