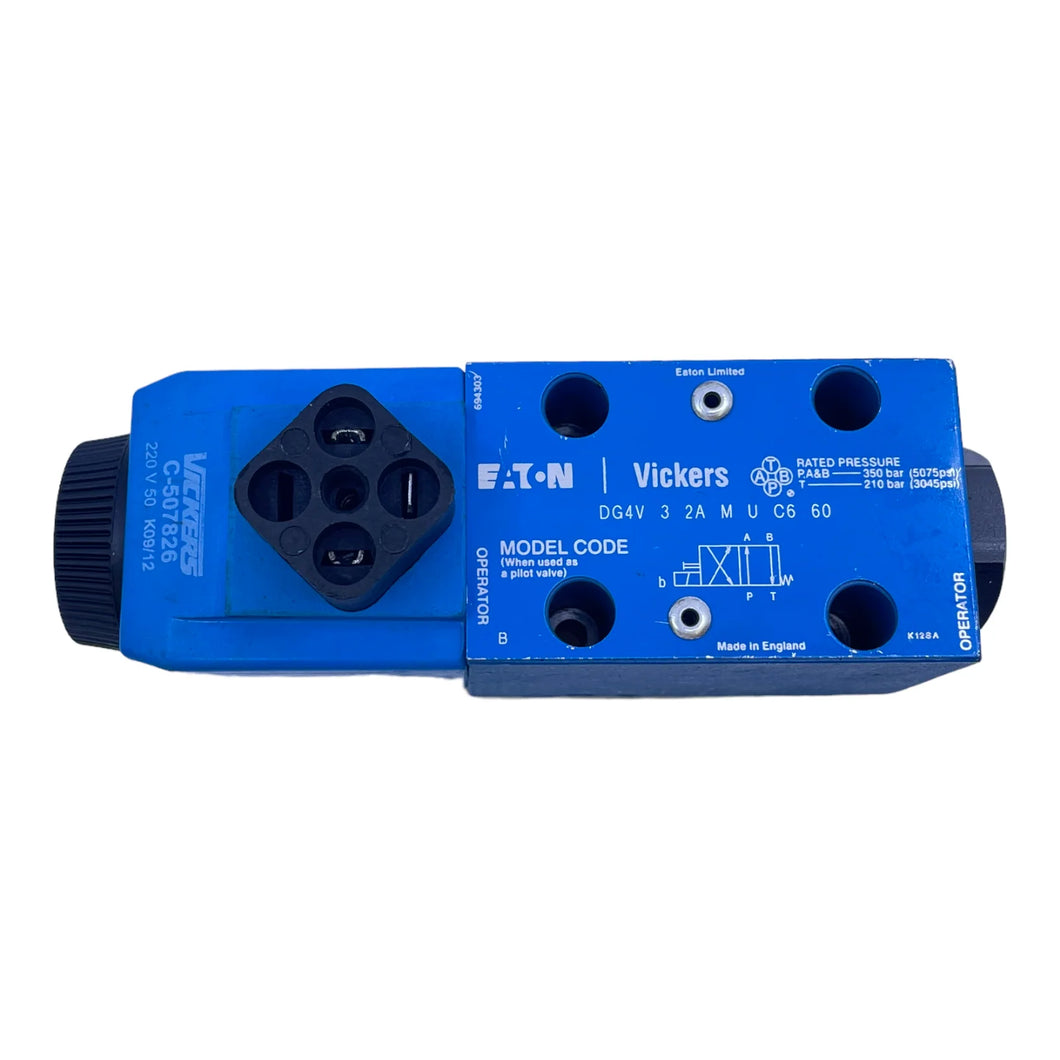

Eaton Vickers DG4V-3-2A-M-U-C6-60
Directional Control Valve
Eaton industrial valves consistently deliver superior performance across stationary and mobile hydraulic applications. From press to bore, clamp to cut, lift to dig and beyond, they provide reliable operation even under extreme conditions.
Danfoss industrial valves and systems are designed with durability and reliability in mind, withstanding challenging operating conditions and delivering consistent performance across industrial applications.
Technical Specifications
| Actuation Type |
Solenoid operated
|
| Coil Rating |
220 VAC 50Hz
|
| Design Series |
60 Series
|
| Electrical Connection |
ISO 4400 (Din 43650) connector
|
| Energ Time |
15-23 ms
|
| Flow rate upto |
21.0 GPM
|
| Flow rate upto |
80 L/Min
|
| Fluid Cleanliness |
19/17/14 micron
|
| Fluid Compatibility |
Petroleum oils
|
| Indicator Light |
No
|
| Interface |
ISO4401-03
|
| Manual override |
Plain
|
| Model Code 1 |
DG4V32AMUC660
|
| Performance |
High performance
|
| Power Consumption |
54 VA
|
| Pressure rating |
350 Bar / 5000 PSI
|
| Seal Type |
Viton
|
| Solenoid Energising ID |
Standard as per ANSI B93 9
|
| Spool Position Monitor |
No
|
| Spool Type |
Spool 2
|
| Spring Arrangement |
Spring offset end to end
|
| Stage |
Single stage
|
| Surge Suppr Damper |
No
|
| Tank port rating BAR |
210 Bar / 3000 PSI
|
| Valve Mount Type |
Subplate/manifold mounted
|
| Valve Type |
Directional control valve
|
| Working temp |
From -20ºC / -4ºF To 70ºC / 158ºF
|
This data is designed as a guide and should not be regarded as wholly accurate in every detail.
