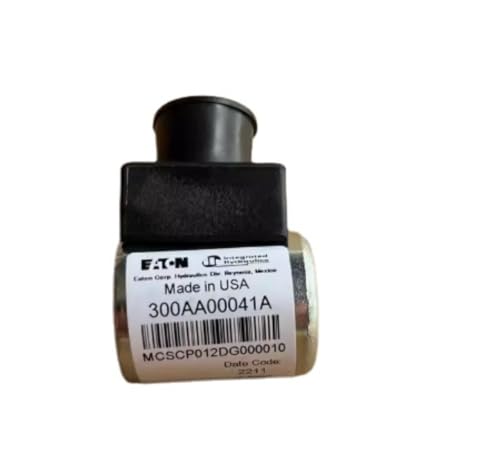

Danfoss Eaton 300AA00041A
12V DC Solenoid Coil

Danfoss acquired Eaton's hydraulics business in 2021. Eaton is a diversified power management company, while Danfoss is a global provider of engineering solutions. The acquisition of Eaton Hydraulics significantly expanded Danfoss's presence in mobile and industrial hydraulics, making them a leader in the field.

Eaton Coils are industrial-grade components providing superior environmental protection and solenoid performance. With rated IP65-IP69K integrated connections and wire leads, they are designed to fit the most stringent environmental requirements for mobile and industrial applications.

Technical Specification
Coil Size: 8 (350 Bar)
Voltage: 12V DC
Power: 29W
Connector Type: ISO 4400 DIN 43650
Duty Rating: 85% to 110%
Encapsulent: Glass Filled Nylon
Environmental Protection: IP65
Fluid Compatibility: MILA-HA-5606, SAE 10, SAE 20, etc
Leakage: Standard
Length: 39.7mm
ID: 13mm
Operating Temperature: 100°C
Weight: 0.14KG

The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted by the manufacturers if any products are incorrectly or inadequately fitted.
Goods may not be exact to image shown.
