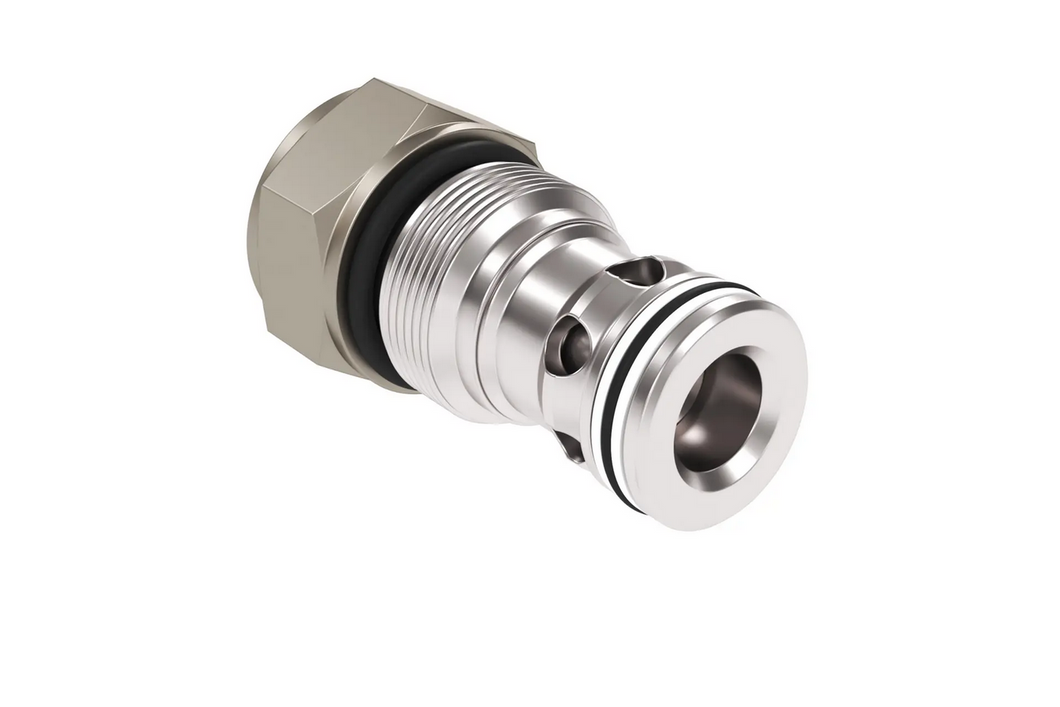

Danfoss Comatrol CV10-NP-0.3-B-00
Check Valve



Comatrol are a member of the Danfoss Group. They have built on their strength of experience over the last 35 years, becoming the market leader in the design of hydraulic cartridge valves and hydraulic integrated circuit (HIC) solutions. Comatrol works collaboratively with customers and distributors, within numerous markets including the mobile, off-highway, energy, agriculture and industrial, to provide high-performance machine control systems. Comatrol's compact, cost-effective cartridge valves combine easily to form almost any hydraulic circuit. Bringing directional, pressure or flow control to your vehicles' hydraulic systems, they point the way to unlimited design flexibility.

This valve allows free flow from 1 to 2 and blocks flow from 2 to 1
Technical Specifications

Crack Pressure: 0.3 Bar (5 PSI)
Seals: Buna-N
Rated Pressure: 350 bar [5075 psi] (Based on NFPA Fatigue Test)
Rated Flow At 7 Bar: 80 L/min (21 US GPM)
Leakage: 6 drops/min @ Rated pressure
Weight: 0.08 kg [0.18 lb]
Cavity: SDC10-2



The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted by the manufacturers if any products are incorrectly or inadequately fitted.
Goods may not be exact to image shown.
