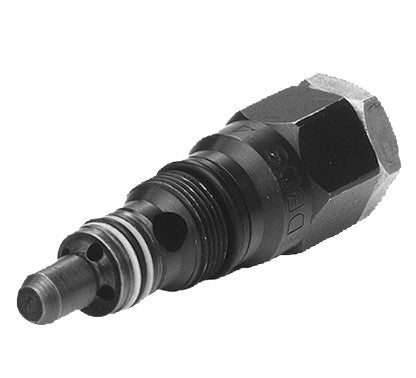

Bosch Rexroth R900965798 DBDS4K1X/420V
2-Way Pressure Relief Valve
As a leading specialist in drive and control technology, Bosch Rexroth has a unique level of technological expertise. The Bosch Group is a leading global supplier of technology and services.
The pressure valve type DBD.. K.. is a direct operated pres-sure relief valve to be installed in blocks. It is used to limit a system pressure. The system pressure can be set using the adjustment element.In the initial position the valve is closed. The pressure in the main port acts on spring plate via pilot line and pop-pet. If the pressure in the main port rises above the value set at the compression spring, poppet opens and the pressure fluid flows into the main port.
Manufacturer: Bosch Rexroth
Type: Pressure Relief Valve
Adjustment type for pressure adjustment: Setscrew with hexagon socket
Nominal size: 4
Working pressure max.: 500 bar
Type of connection: Screw-in cartridge valve
Pressure rating: 420 bar
Seal material: FKM
Line connection: Pipe thread according to ISO 228/1
Weight: 0,1 kg
Working pressure max. (bar): 500 bar
Set pressure: 420 bar
