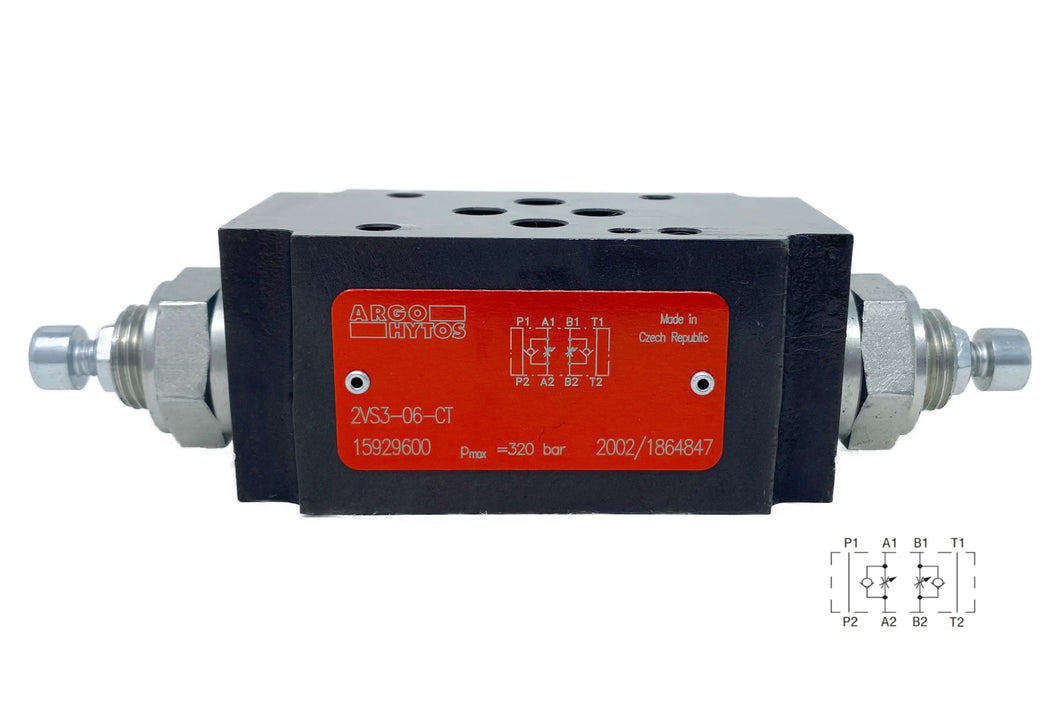

Argo Hytos 2VS3-06-CT
Flow Control Valve
As a components and system supplier, ARGO-HYTOS is an essential part in the supply chain of the world market leaders when it comes to mobile working machinery and mechanical engineering.
With modern technical challenges becoming more complex as time goes on, it is vital to find system partners who can offer an integrated approach supported by outstanding experience, which they can contribute to projects and offer solutions for fluid power technology.
Dual hydraulic flow restrictor valves with an optional by-pass check valve are used to control flow rates in two separate lines (A, B) of a hydraulic circuit. The modular design provides six functional versions. The valve restricts the fluid flow in one direction while providing free reverse flow in the opposite direction. The throttle is adjusted by a set screw, which can be operated by a key, a hand screw, or a hand screw with key lock.
The sandwich design supports stacking with other components of the same size. The separate O-ring plate provides sealing of the valve on a connecting surface. Depending
on the valve installation it functions as a meter-in or meter-out flow control device. Changing the valve from meter-in to meter-out mode can be done by turning the valve by 180° around its horizontal. The orientation of the throttle check valve(s) in the valve body corresponds with the symbol on the nameplate.
Size 06 (D03) • Qmax 80 l/min (21 GPM) • pmax 320 bar (4600 PSI)
- Restrictor valve with reverse flow check, mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
- Meter-in or meter-out flow control
- Leak-free closing in one or two service ports
- Linear adjustment and positive seat overlap
- Desired settings may be locked down
- Optionally adjustable by allen key with protective cap, or by hand screw
- In the standard version, the sandwich plate of valve is phosphated for basic surface corrosion protection and as preparation for painting. Steel parts are zinc-coated for corrosion protection 240 h in NSS acc. to ISO 9227
- Enhanced surface protection for mobile applications is available. The sandwich plate and steel parts are zinc-coated with corrosion protection 520 h in NSS
Technical Specification
Valve Size: 06 (D03)
Max. Flow: 80L/Min (21.1 GPM)
Max. Operating Pressure: 320 Bar (4640 Psi)
Fluid Temperature Range (NBR): -30 To +100°C (-22°F To +212°F)
Fluid Temperature Range (FPM): -20 To +120°C (-4°F To +248°F)
Weight: 1.2KG (2.65 LBS)
2VS3-06-CT
2VS3 - Restrictor valve with reverse flow check, modular
06 - Valve Size
C - Check valve in line A and B, meter-in
T - Adjustment Option - allen key (hex. 5), with protective cap
Seals - NBR
Surface Treatment - Body Phosphated
