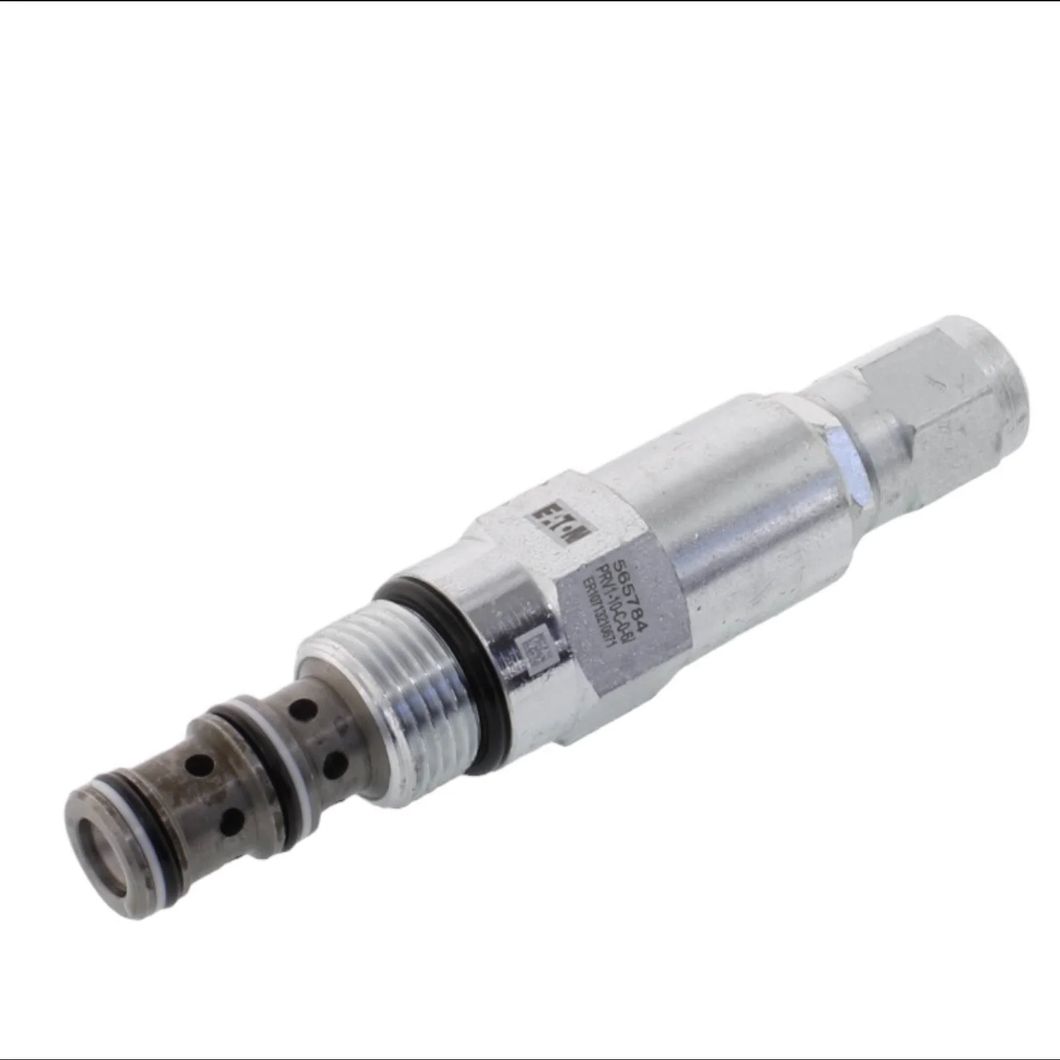

Eaton leads the industry in screw-in cartridge valve (SiCV) technology with a wide selection of hydraulic valves for both stationary and mobile equipment. This product line includes pressure, flow, proportional and logic element screw-in cartridge valves and hydraulic integrated circuits.

Operation
Normally open, the valve throttles or closes to maintain constant pressure in the regulated  ine. As in the other direct acting valves, the spring force holds the valve open.

Features
Hardened steel working parts are individually match ground to assure long life, reliability and high accuracy.

Technical Specifications
Typical application pressure (all ports): 165 bar (2400 psi)
Cartridge fatigue pressure (infinite life): 210 bar (3000 psi)
Rated flow: 15 L/min (4 USgpm)
Cavity: C-10–3
Standard housing materials: Aluminum
Temperature range: -40° to 120˚C (-40° to 248˚F)
Fluids: All general purpose hydraulic fluids such as: MIL–H–5606, SAE 10, SAE 20, etc.
Filtration Cleanliness Code: 18/16/13
Weight: cartridge only 0,24 kg (0.54 lbs)
Buna-N Seal kits: 565804
Viton Seal kits: 889599




This data is designed as a guide and should not be regarded as wholly accurate in every detail.
