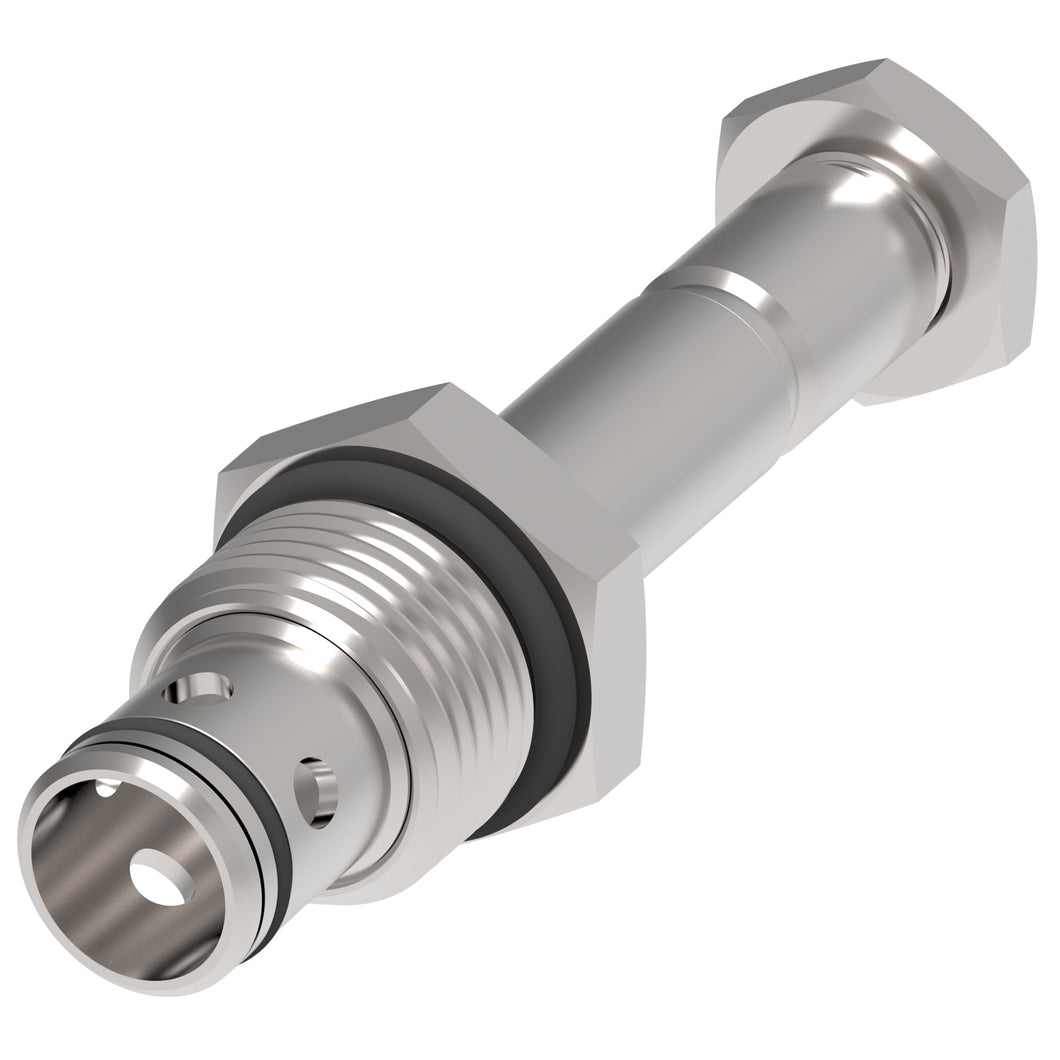

Danfoss Eaton Vickers SV3-10-C-0-00
Solenoid Valve
Eaton leads the industry in screw-in cartridge valve (SiCV) technology with a wide selection of hydraulic valves for both stationary and mobile equipment. This product line includes pressure, flow, proportional and logic element screw-in cartridge valves and hydraulic integrated circuits.
Technical Specifications
| Cavity |
C-10-2
|
| Coil termination |
None
|
| Diode |
No
|
| Flow rate lpm |
45.00
|
| Fluid compatibility |
MIL-H-5606, SAE10, SAE20, etc
|
| Function |
Solenoid Valve
|
| Housing |
No
|
| Housing material |
Aluminum
|
| Installation type |
Screw-in Cartridge
|
| Model code |
SV3-10-C-0-00
|
| Number of housing ports |
2
|
| Number of valve ports |
2
|
| Operating temperature |
-40 C to 120 C (-40 to 248 F)
|
| Operation |
Electrically operated
|
| Override type |
None
|
| Port type |
Cartridge Only
|
| Pressure rating BAR |
210
|
| Recommended filtration level |
18/16/13
|
| Seal type |
Buna-N
|
| Special Features |
None
|
| Style |
2-Way 2-Position NC
|
This data is designed as a guide and should not be regarded as wholly accurate in every detail.
