406AA02088A - 1CEL30F40S310/60 - Danfoss Eaton Vickers Motion Control Overcentre Valve

406AA02088A - 1CEL30F40S310/60 - Danfoss Eaton Vickers Motion Control Overcentre Valve

Regular price
£196.00
Sale price
£196.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

In Stock: 1

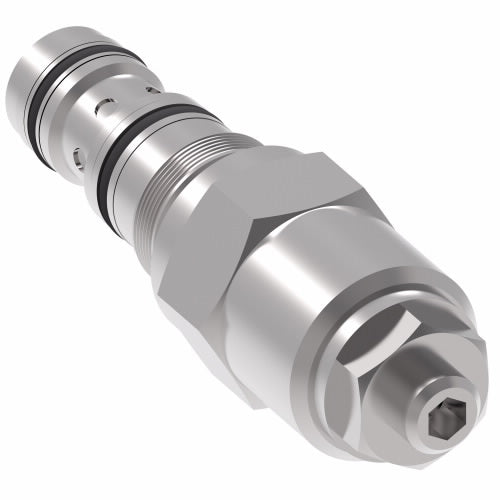

Danfoss Eaton Vickers 1CEL30F40S310/60
Overcentre Valve





Eaton leads the industry in screw-in cartridge valve (SiCV) technology with a wide selection of hydraulic valves for both stationary and mobile equipment. This product line includes pressure, flow, proportional and logic element screw-in cartridge valves and hydraulic integrated circuits.

Technical Specifications
Adjustment type: Screw
Cavity: A6610
Flow rate: 30L/Min
Fluid compatibility: MIL-H-5606, SAE10, SAE20, etc
Function: Counterbalance Valve
Housing: None
Installation type: Screw-in Cartridge
Leakage: 0.25 cc/min
Max load induced p: 280 Bar
Max pilot adjust p: 83.140 Bar
Max relief press: 380 Bar
Min pilot adjust p: 68.023 Bar
Model code: 1CEL30-F-40S-315-50
Number of housing ports: 3
Number of valve ports: 3
Operating temperature: -30 C to 90 C (-22 to 194 F)
Operation: Pilot operated
Pilot ratio: 4.3:1
Port Size: None
Port type: Cartridge Only
Pressure rating: 380
Recommended filtration level: 18/16/13
Seal type: Nitrile
Special Features: None
Style: Pilot assisted relief w check

This data is designed as a guide and should not be regarded as wholly accurate in every detail.
