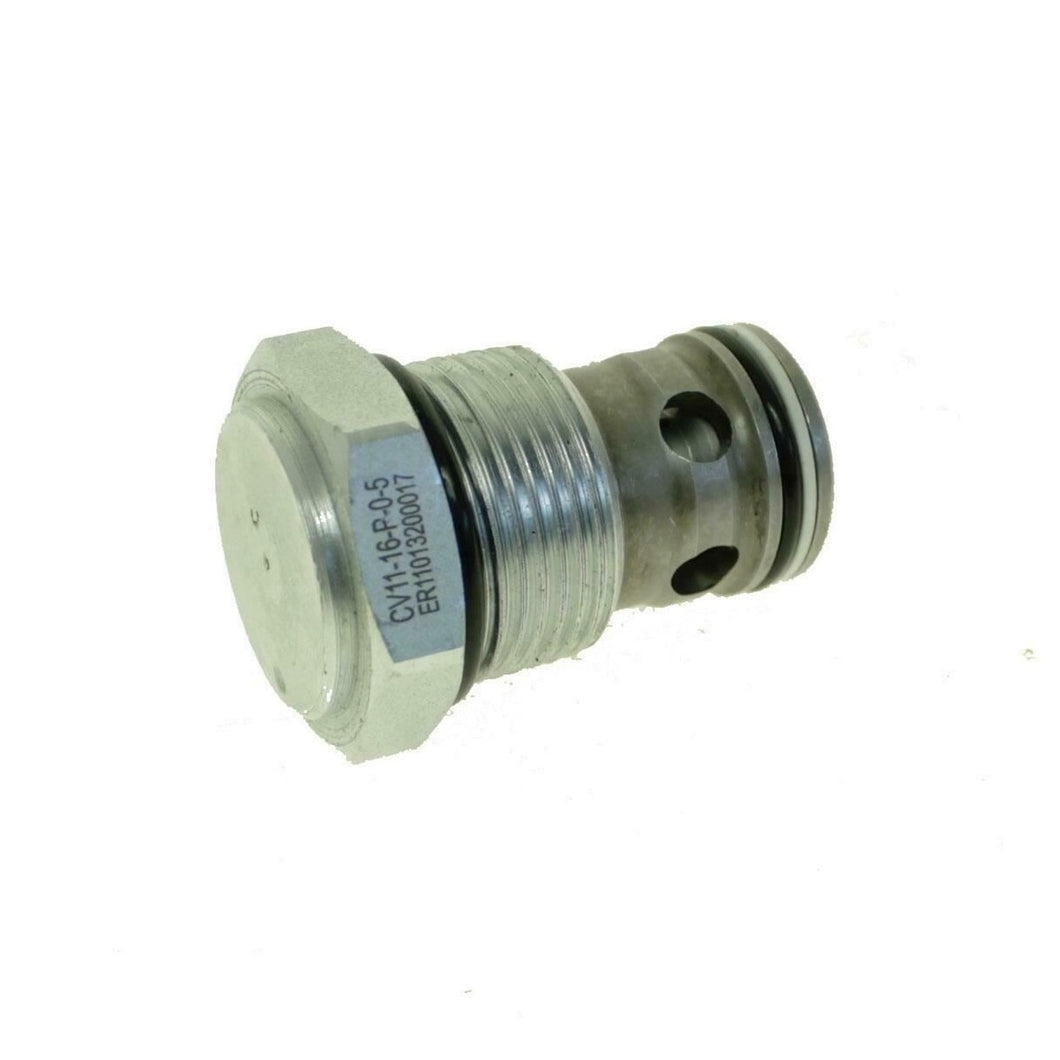

Eaton leads the industry in screw-in cartridge valve (SiCV) technology with a wide selection of hydraulic valves for both stationary and mobile equipment. This product line includes pressure, flow, proportional and logic element screw-in cartridge valves and hydraulic integrated circuits.

Technical Specifications
Application: Harvesters, Refuse Haulers, Mobile And Industrial Applications
Cavity: C-16-2
Cracking Pressure: 0.35 Bar
Flow Rate: 151 LPM
Fluid Compatibility: All General Purpose Hydraulic Fluids Such as: MIL-H-5606, SAE 10, SAE 20 etc
Function: Check Valve
Width: 1.1/2" (38.1mm)
Height: 1.1/2" (38.1mm)
Length: 2.26" (57.4mm)
Housing: No
Installation Type: Screw In Cartridge
Leakage Rate: 0.3 cc/min.
Material: Steel
Number Of Housing Ports: 2
Number Of Valve Ports: 2
Operating Temperature: -40°C to +120°C
Operation: Direct Acting
Pilot Piston Seal: No
Port Type: Cartridge Only
Pressure Rating: 210 Bar (3045 PSI)
Recommended Filtration Level: 13 µm, 16 µm, 18 µm
Seal Material: Buna-N
Size: 16
Special Features: None
Style: Poppet
Weight: 0.26 KG (0.58 lbs)

This data is designed as a guide and should not be regarded as wholly accurate in every detail.
