2 Piece PN40 Brass Ball Valve Full Bore BSPP Female WRAS Approved

2 Piece PN40 Brass Ball Valve Full Bore BSPP Female WRAS Approved

Regular price
£6.00
Sale price
£6.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

In Stock: 100

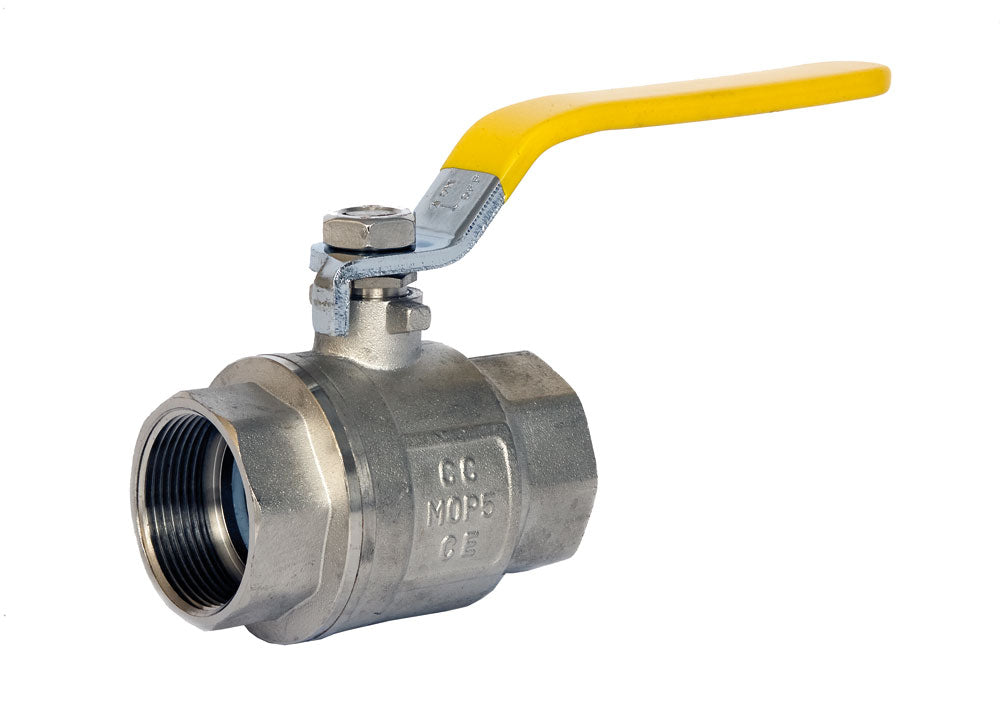

Brass Female Ball Valve
Full Bore, BSPP


Technical Data:
Threads: Screwed BSP Parallel (ISO 228/1)
Body Material:
 Brass / Nickel Plated CW617N
Cap Material
: Brass / Nickel Plated CW617N
Seat Material: PTFE
Shaft Material: 420 Stainless Steel
Max Pressure: 1/4" - 2" 40 Bar, 2.1/2" - 4" 25 Bar
Working Temperature: -20°C to +140°C
Gas Distribution Max Pressure: 1/4" - 4" 5 Bar
Gas Distribution Working Temp: -20°C to +60°C
WRAS & EN331 Gas Approved
Anti-blow-out stem
Full bore
Locking lever, thermal extension (1/2”-2” only) and tee handle (1/4” to 1” only) options  available.



This data is designed as a guide and should not be regarded as wholly accurate in every detail.
We reserve the right to amend the specification of any product without notice.
