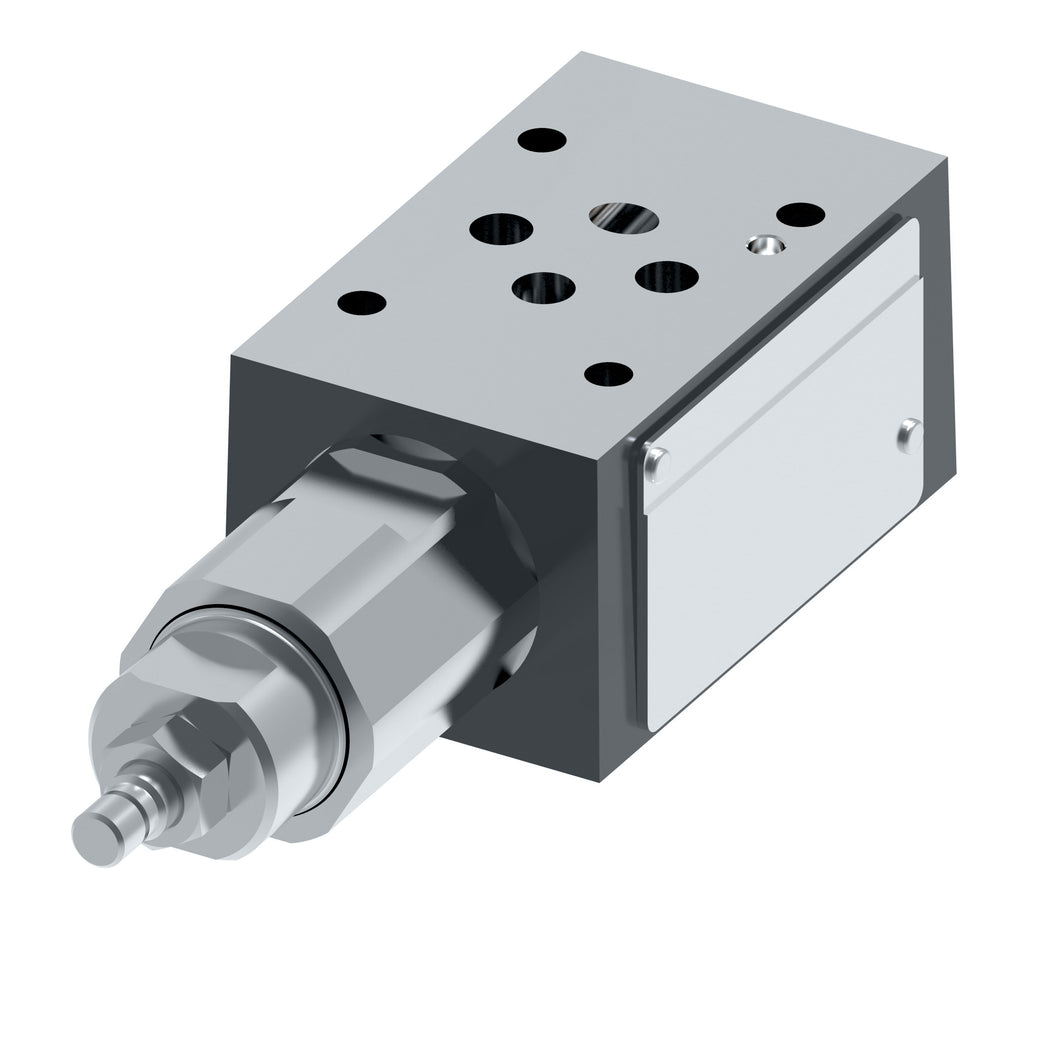

Eaton Vickers DGMC-3-BT-CH-41
Pressure Relief Valve




Eaton industrial valves consistently deliver superior performance across stationary and mobile hydraulic applications. From press to bore, clamp to cut, lift to dig and beyond, they provide reliable operation even under extreme conditions.
Danfoss industrial valves and systems are designed with durability and reliability in mind, withstanding challenging operating conditions and delivering consistent performance across industrial applications.

Vickers SystemStak valves make compact hydraulic systems in which modular valves  are "sandwich" mounted between a directional valve and a standard mounting surface.  Compact design improves system response by elimination of external fluid conductors, thereby resulting in elimination of resonant sounds which are noisy and lead to leakage.  The design of these valves is well proven and offers opportunities for achieving small control assemblies, especially when the valves are used with multi-station manifolds.

Technical Specifications
Actuation Type
: Pressure Operated
Adjustment Type: Handknob
Design Series: 41 Series
Discharge 1: Discharge Into T
First Function: Pressure Limited In B
Flow rate: Upto 16.0 GPM / 60.0 LPM
Fluid Cleanliness: 17/15/12 micron
Fluid Compatibility: Petroleum oils
Interface: ISO4401-03
Model Code: DGMC3BTCH41
Performance: Standard
Pressure Adjustment Range: 10-200 bar (145-2900 psi)
Max Pressure rating: 315 Bar / 4500 PSI
Seal Type: Viton
Tank port rating: 120 Bar / 1750 PSI
Valve Mount Type: Subplate/manifold mounted
Valve Type: Single relief valve
Max Working temp: 80º C / 176º F
Min Working temp: -20º C / -4º F


This data is designed as a guide and should not be regarded as wholly accurate in every detail.
