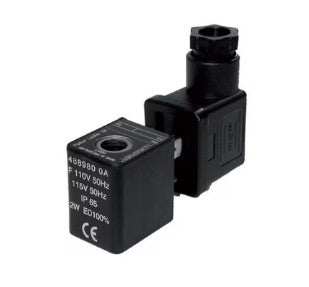

Parker Lucifer 4889803D
Solenoid Coil
Lucifer is a division of industry giant Parker Hannifin that manufactures fluid control solenoid valves and pressure regulators. Lucifer Parker is located in Carouge-Geneva, Switzerland with manufacturing sites both in Geneva and Gessate near Milan, Italy
22mm coils for FCSE Solenoid Valves include many options to fullfill the demand of the most challenging applications in Industrial and Process markets. The solid and robust design includes internal polar expansion to optimize the magnetic field delivering high performances also against voltage drops or heat concerns. This product solution bears multiple approvals including UL, CSA, VDE to fulfill the demand of different segments and applications in Industrial and Process markets.
Markets
- Industrial
- Process
Applications
- Any in Industrial and Process Market
Technical Specification
Coil Power Consumption: 2W
Insulation Class: F 155 °C
Coil Temperature Range: -40°C +50°C
Power Supply Voltage: 220-230V 50Hz
Coil Specifications Met: CE - EAC - UKCA
Electrical Connection: 2 P + E plug according to EN 175301-803 type B
