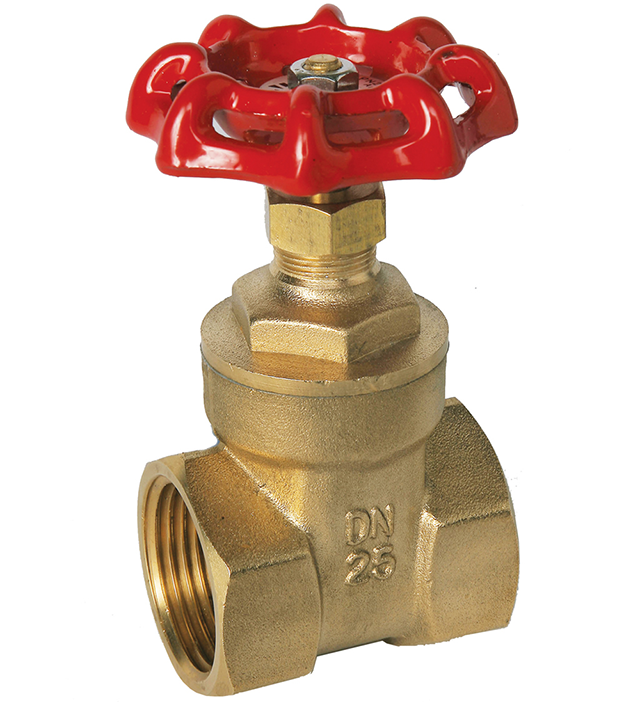

Brass Gate Valve
Full Bore PN20

Technical Data:
Thread: Screwed BSP Taper (ISO 7/1) [BSPT]
Body & Bonnet Material: Brass HPb58-2
Stem Material: Brass CW617N
Hand Wheel Material: Cast Iron HT200
Max Pressure: 20 Bar
Working Temperature: -20°C to +170°C
WRAS Approved.

This data is designed as a guide and should not be regarded as wholly accurate in every detail.
We reserve the right to amend the specification of any product without notice.

Can't Find A Part? Ask us!
We specialise in sourcing hard to find specials, oddballs & obsolete parts, get in touch if you can't see what you are looking for.
01555 772474
sales@uscltd.co.uk

The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted if any products are incorrectly or inadequately fitted.
Goods may not be exact to image shown.
