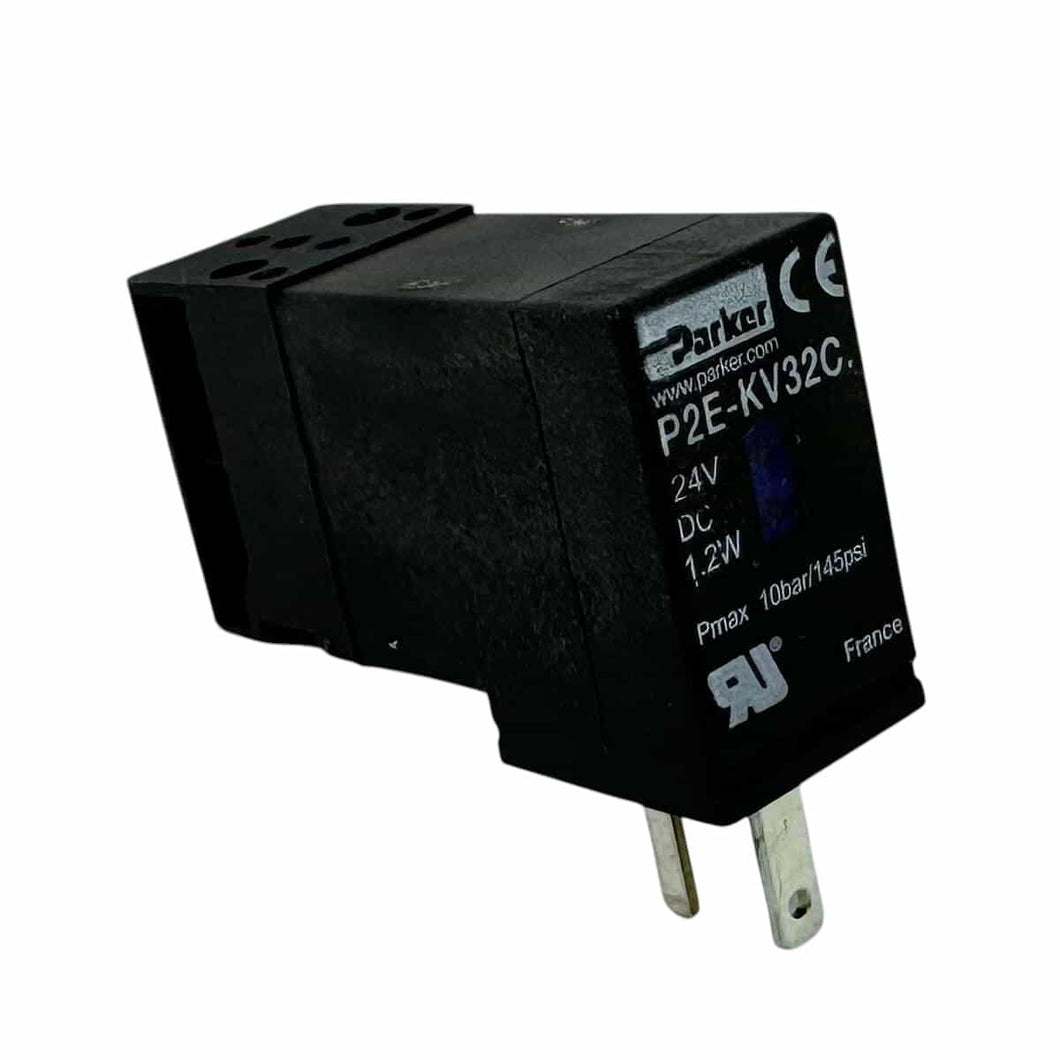

Parker Viking Xtreme
P2E-KV32C1
24V DC Solenoid Coil

The Viking Xtreme valve range is robust, versatile and combines high performance with  compact installation dimensions. Large flow capacity, short change-over times and low  change-over pressure are important characteristics of this valve range. The 1/8 & 1/4  sizes are designed to operate with pressures up to 16 bar and the 3/8 & 1/2 sizes up to 12 bar, in ambient temperatures -40ºC to + 60ºC when fitted with suitable solenoid  operators.

Replacement Solenoid Coils.
The Parker P2E series 24VAC replacement solenoid coil is compatible with B, PVL, Viking Xtreme valve. It consumes 1.2W power.
Note - Pilot valves are sometimes referred to as pressure-actuated valves.
Solenoid coil operators and connector plugs must be ordered separately.

Features and Benefits
Fast response, high flow and inline ported valves.
Low power solenoid operators, ordered separately.
Non-locking manual override.
Wear compensation system for optimum performance.
Sizes: M5, 1/8" and 1/4"
Compact size.
Inlet-exhaust-mounting facility.
Fast response, high flow.
Integrated mounting holes.
Wear compensation System.
DIN rail mountable manifolds.


Technical Information
Working Pressure: 1,5 to 10 bar
Working Temperature: -10 °C to +50 °C
Voltage: 24V DC
Electrical Connection: EN175301-803 C/ISO15217 (Ex DIN 43650C)
