Parker Ermeto W35LCFX - WSV35L0MDCF - 35L Bulkhead Union Elbow

Parker Ermeto W35LCFX - WSV35L0MDCF - 35L Bulkhead Union Elbow

Precio habitual
£42.00
Precio de venta
£42.00
Precio habitual
£58.00
Agotado
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pagos.

In Stock: 6

Parker Ermeto
W35LCFX - WSV35L0MDCF

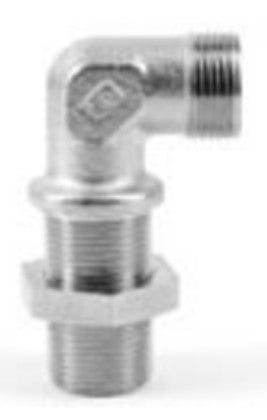

35L Bulkhead Union Elbow



The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of Ermeto DIN tube to tube high pressure hydraulic tube fittings, types G, GR, W, T, TR, K, SV, up to WSV is available in steel with Cr(VI)-free surfaces and in a stainless steel version.
Depending on the specific application, the fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Markets:

  • Automotive
  • Defence
  • Energy
  • Environment
  • Industrial
  • Infrastructure
  • Machine Tools
  • Material Handling
  • Mobile
  • Oil and Gas
  • Power Generation
  • Process
  • Transportation
  • Water

Applications:

  • Suitable for general hydraulic applications.

Features/ benefits:

  • High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute helps to extends the life cycle of the fittings.
  • Stainless Steel surface: Ermeto DIN tube to tube high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. Thes features extend the range of applications.
  • High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.



Part Number - W35LCFX
Part Number - WSV35L0MDCF
Brand - Ermeto
Manufacturer - Parker Hannifin
Material - Steel, Cr(VI)-free
Series - Light Series
Tube Size - 35L
Tube Size II - 35L
Exterior Tube Diameter: 35mm
Shape - Union elbow - EO 24° cone end flareless
Type - Complete with nut and ring
Weight - 0.358 KG
Customs Tariff Number - 73079290
Country of Manufacture - Germany
