Heinz Marchel KP100-100-G1/2B - XP126902 Analog Pressure Gauge 0-100 Bar KP 100 Series 1/2 BSP 100mm Face

Heinz Marchel KP100-100-G1/2B - XP126902 Analog Pressure Gauge 0-100 Bar KP 100 Series 1/2 BSP 100mm Face

£49.98
£49.98
£70.00
Agotado
Los gastos de envío se calculan en la pantalla de pagos.

In Stock: 1

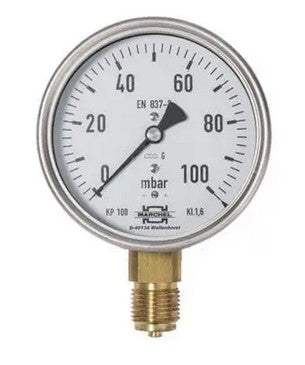

Heinz Marchel KP100-100-G1/2B
Analog Pressure Gauge



The focus of the Europe-wide operating company is the design and manufacturing of:
- gas filter for industrial combustion technology and public gas supply
- fully automatic cleaning and empty hook conveyor systems
- meat hooks and stainless steel products for the meat processing industry.

Capsule pressure gauge; Class 1.6, with zero control. For the indication of the pressure according to for gas according to the code of practice DVGW G 260 and air, stainless steel case 100 mm.

Suitable for measuring pressures: For natural gas, city gas, liquid gas (gases) and air, in accordance with DVGW code of practice G 260.

Technical Specification
Series: KP 100
Display: Analogue
Thread Connection: 1/2" BSP
Pressure Min: 0 bar
Pressure Max: 100 bar
Process Temperature: Min: -20oC (-4 F); Max: 60oC (140oF)
Case Material: Stainless Steel
Material Connection: Brass
Application: Gas
Technology: With A Burd Tube
Level: IP54

 Can't Find A Part? Ask us!
We specialise in sourcing hard to find specials, oddballs & obsolete parts, get in touch if you can't see what you are looking for.
01555 772474
sales@uscltd.co.uk



The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted if any products are incorrectly or inadequately fitted.
Goods may not be exact to image shown.
