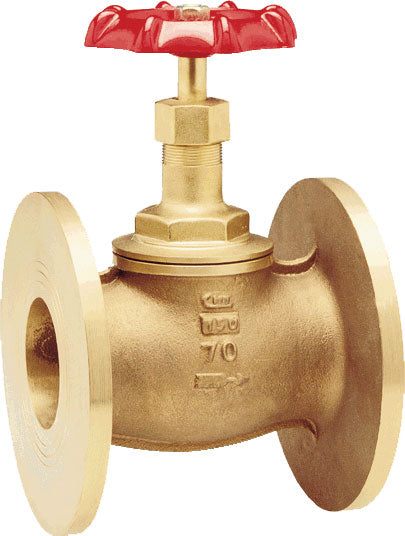

Flanged Bronze Globe Valve
PN16

Technical Data:
Flange: PN16 To BS EN1092
Body Material: Bronze CC491K
Bonnet Material: Brass CW617N
Stem Material: Brass CW617N
Hand Wheel Material: Aluminium Alloy
Max Pressure: 16 Bar
Working Temperature: -10°C to +170°C
BS 5154 (BS EN12288)

This data is designed as a guide and should not be regarded as wholly accurate in every detail.
We reserve the right to amend the specification of any product without notice.
