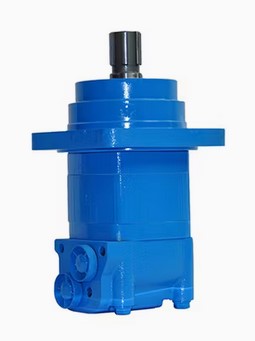

Char-Lynn Motor
Equivalent BM2-315
BM2/S Series
BM2 motor is a shaft-balanced motor. The pin-tooth stator and rotor pair design has low starting pressure, high efficiency and good retention. Reliable shaft seal design, high back pressure, can be used in series and parallel. Convenient forward and reverse direction conversion, stable speed. Special design of linkage shaft, long motor life. Best efficiency and economic performance, suitable for medium load. The motor has a compact structure and is easy to install.
Technical Specification
Model Number: BM2
Casing Protection: Closed Type
Number of Poles: 4
Speed: Low Speed
Type: Gear Type
Structure: Hydraulic System
|
Displacement(ml/r) |
|
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
|
Flow(LPM) |
Cont. |
40 |
53 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
|
Int. |
46 |
58 |
68 |
68 |
68 |
68 |
68 |
68 |
68 |
68 |
68 |
|
|
Speed(RPM) |
Cont. |
750 |
760 |
653 |
551 |
440 |
344 |
276 |
220 |
175 |
140 |
110 |
|
Int. |
863 |
832 |
766 |
646 |
516 |
404 |
323 |
258 |
205 |
162 |
128 |
|
|
Pressure(Mpa) |
Cont. |
14 |
14 |
14 |
14 |
14 |
14 |
12.5 |
11 |
9 |
9 |
8 |
|
Int. |
17 |
17 |
17 |
17 |
17 |
17 |
15 |
13 |
11 |
10 |
9 |
|
|
Torque(N*m) |
Cont. |
89 |
112 |
142 |
178 |
223 |
285 |
318 |
350 |
360 |
418 |
464 |
|
Int. |
108 |
136 |
172 |
216 |
270 |
346 |
382 |
416 |
400 |
464 |
500 |
