Flow is blocked from 1 to 2 until pressure increases to meet the selected valve setting,  lifting the poppet from its seat and allowing relief flow through port 2 to tank. Pressure at  port 2 is additive to the relief setting of the valve. The unique Bosch Rexroth Oil  Control poppet design provides enhanced stability at all flows and pressures.



Technical Specifications

Series: (DBD)
Type: Pressure relief valve, direct operated
Adjustment Type for Pressure Adjustment (S): Bushing with hexagon and protective cap
Size: 6 (port G1/4)
Type of Connection (K): As screw-in cartridge valve (cartridge)
Component Series (1X): Component series 10 ... 1Z (10 ... 1Z: unchanged installation and connection dimensions)
Pressure rating (200): Set pressure up to 200 bar
Corrosion resistance: None
Seal Material: NBR seals
Line connection: Pipe thread according to ISO 228/1

The purchaser of these items must ensure that they are satisfactory for use in the application for which they are intended.
No responsibility can be accepted by the manufacturers if any products are incorrectly or inadequately fitted.

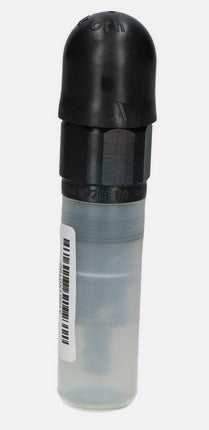

Goods may not be exact to image shown.
